com.viaoa.hub

Class DetailHub<TYPE>

java.lang.Object

com.viaoa.hub.Hub<TYPE>

com.viaoa.hub.DetailHub<TYPE>

All Implemented Interfaces:

Serializable, Cloneable, Comparable<TYPE>, Iterable<TYPE>

Direct Known Subclasses:

ParentHub

public class DetailHub<TYPE>
extends Hub<TYPE>

A DetailHub is a Hub that automatically contains the object(s) of a property from the active object of another Hub (master). This is referred as a Master/Detail relationship.

Whenever the active object of the master Hub is changed, the Detail Hub will automatically be updated to include the objects of a property in the active object.

Example:
A Department Class has many Employees (using a Hub). A DetailHub can be created using a Hub of Department objects as the master Hub. This DetailHub will automatically contain the Employee objects for whichever Department is currenly the active object in the master Hub.

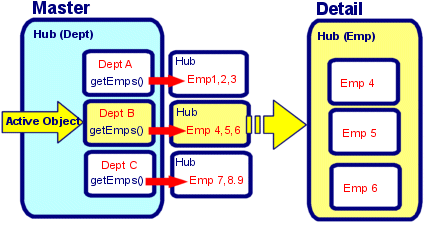

Using the diagram, the detail Hub is populated with the Employee objects from the Department that is the active object in the master Hub. Actually, the detail Hub is not really populated, but rather it uses the same Data that the Dept B Employee Hub is using. If an Employee object is added to the active Department's Employee Hub, the Detail Hub would also contain this Employee.

In this example, a UI Component (ex: JTable) could be setup to list the Department objects and another UI Component (ex: JTable) could list the Employee objects from the Department that is selected. If another Department is selected, then the JTable listing the Employees will show that Departments Employee objects.

 Hub hubDept = new Hub(Department.class);   // create new Hub for Department objects
 hubDept.select();      // select all departments from datasource
 Hub hubEmp = new HubDetail(hubDept, "Employees"); // create Hub that will automatically
                                                   //  contain the Employee objects
                                                   //  for the active Department
 // Or
 Hub hubEmp = new HubDetail(hubDept,"Employees", "lastName, firstName"); // sets sort order



See Also:

Hub, Serialized Form

Field Summary

Fields inherited from class com.viaoa.hub.Hub

data, dataa, datam, datau

Constructor Summary

Constructors

Constructor and Description
DetailHub(Hub hubMaster, Class<TYPE> clazz) Create a new DetailHub based on a reference Class from a master Hub.
DetailHub(Hub hubMaster, Class<TYPE> clazz, boolean bShareActiveObject) Create a new DetailHub based on a reference Class from a master Hub.
DetailHub(Hub hubMaster, Class<TYPE> clazz, boolean bShareActiveObject, String selectOrder) Create a new DetailHub based on a reference Class from a master Hub.
DetailHub(Hub hubMaster, Class<TYPE> clazz, String selectOrder) Create a new DetailHub based on a reference Class from a master Hub.
DetailHub(Hub hubMaster, String propertyPath) Create a new DetailHub based on a property path from a master Hub.
DetailHub(Hub hubMaster, String propertyPath, boolean bShareActiveObject) Create a new DetailHub based on a property path from a master Hub.
DetailHub(Hub hubMaster, String propertyPath, boolean bShareActiveObject, String selectOrder) Create a new DetailHub based on a property path from a master Hub.
DetailHub(Hub hubMaster, String propertyPath, String selectOrder) Create a new DetailHub based on a property path from a master Hub.

Method Summary

Methods inherited from class com.viaoa.hub.Hub

add, add, addElement, addHubListener, addHubListener, addHubListener, addHubListener, addHubListener, addHubListener, addHubListener, addHubListener, addHubListener, addListener, addTriggerListener, addTriggerListener, canAdd, canAdd, cancelSelect, cancelSort, canRemove, canRemove, canRemoveAll, clear, clone, compareTo, contains, copyInto, copyInto, createShared, createSharedHub, createSharedHub, deleteAll, elementAt, ensureCapacity, finalize, find, find, find, find, findNext, findNext, getActiveObject, getAddHub, getAO, getAt, getChanged, getCurrentSize, getDefaultPos, getDetailHub, getDetailHub, getDetailHub, getDetailHub, getDetailHub, getDetailHub, getDetailHub, getDetailHub, getDetailHub, getDetailHub, getDetailHub, getEnabled, getLast, getLinkHub, getLinkPath, getMasterClass, getMasterHub, getMasterObject, getNullOnRemove, getOAObjectInfo, getOAObjectInfo, getObject, getObjectAt, getObjectClass, getPos, getPos, getPos, getProperty, getRealHub, getRefresh, getRootHub, getSelect, getSelect, getSelectOrder, getSelectWhere, getSharedHub, getSize, hasDetailHubs, indexOf, insert, isDeletingAll, isLoading, isMoreData, isOAObject, isOwned, isServer, isSorted, isValid, iterator, loadAllData, move, readResolve, remove, remove, removeAll, removeAt, removeDetailHub, removeHubListener, removeLinkHub, removeListener, removeProperty, resequence, resetAO, resizeToFit, resort, saveAll, saveAll, select, select, select, select, select, select, select, select, select, select, select, selectPassthru, sendRefresh, setActiveObject, setActiveObject, setAddHub, setAO, setAO, setAutoMatch, setAutoMatch, setAutoMatch, setAutoMatch, setAutoSequence, setAutoSequence, setAutoSequence, setChanged, setDefaultPos, setEnabled, setLink, setLinkHub, setLinkHub, setLinkHub, setLinkHub, setLinkHub, setLinkHub, setLinkHub, setLinkHub, setLinkHubOnPos, setLoading, setMasterHub, setMasterHub, setMasterHub, setMasterHub, setMasterHub, setNullOnRemove, setPos, setProperty, setRefresh, setRootHub, setSelectOrder, setSelectWhere, setSharedHub, setSharedHub, setUniqueProperty, size, sort, sort, sort, sort, sort, swap, toArray, toArray, toString, updateLinkProperty

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, wait, wait, wait

Methods inherited from interface java.lang.Iterable

forEach, spliterator

Constructor Detail

DetailHub

public DetailHub(Hub hubMaster,
                 String propertyPath)

Create a new DetailHub based on a property path from a master Hub.

DetailHub

public DetailHub(Hub hubMaster,
                 String propertyPath,
                 boolean bShareActiveObject)

Create a new DetailHub based on a property path from a master Hub.

Parameters:

bShareActiveObject - if true, then detail Hub uses same active object as the property (if it is a Hub) that it is using.

DetailHub

public DetailHub(Hub hubMaster,
                 String propertyPath,
                 String selectOrder)

Create a new DetailHub based on a property path from a master Hub.

Parameters:

selectOrder - if value from property path has not been created/selected, then this will be the sort order used when it is selected.

DetailHub

public DetailHub(Hub hubMaster,
                 String propertyPath,
                 boolean bShareActiveObject,
                 String selectOrder)

Create a new DetailHub based on a property path from a master Hub.

Parameters:

bShareActiveObject - if true, then detail Hub uses same active object as

selectOrder - if value from property path has not been created/selected, then this will be the sort order used when it is selected.

DetailHub

public DetailHub(Hub hubMaster,
                 Class<TYPE> clazz)

Create a new DetailHub based on a reference Class from a master Hub. will be the sort order used when it is selected.

DetailHub

public DetailHub(Hub hubMaster,
                 Class<TYPE> clazz,
                 boolean bShareActiveObject)

Create a new DetailHub based on a reference Class from a master Hub.

Parameters:

bShareActiveObject - if true, then detail Hub uses same active object as will be the sort order used when it is selected.

DetailHub

public DetailHub(Hub hubMaster,
                 Class<TYPE> clazz,
                 String selectOrder)

Create a new DetailHub based on a reference Class from a master Hub.

Parameters:

selectOrder - if value from property path has not been created/selected, then this will be the sort order used when it is selected.

DetailHub

public DetailHub(Hub hubMaster,
                 Class<TYPE> clazz,
                 boolean bShareActiveObject,
                 String selectOrder)

Create a new DetailHub based on a reference Class from a master Hub.

Parameters:

bShareActiveObject - if true, then detail Hub uses same active object as

selectOrder - if value from property path has not been created/selected, then this will be the sort order used when it is selected.
